The NHM series from DN Solutions (formerly Doosan Machine Tools) includes heavy-duty horizontal machining centers which combine a very rigid structure, remarkable machining capacity and long term high accuracy to meet your production requirements. The optimally integrated structure of box guideways ensures higher rigidity. This is critical for heavy-duty cutting of difficult to machine materials. A variety of pallet sizes are available to produce workpieces of different shapes and sizes. Reliability and productivity are vastly improved by using servo-driven tool changers and pallet changers, which minimize idle time.
You are here

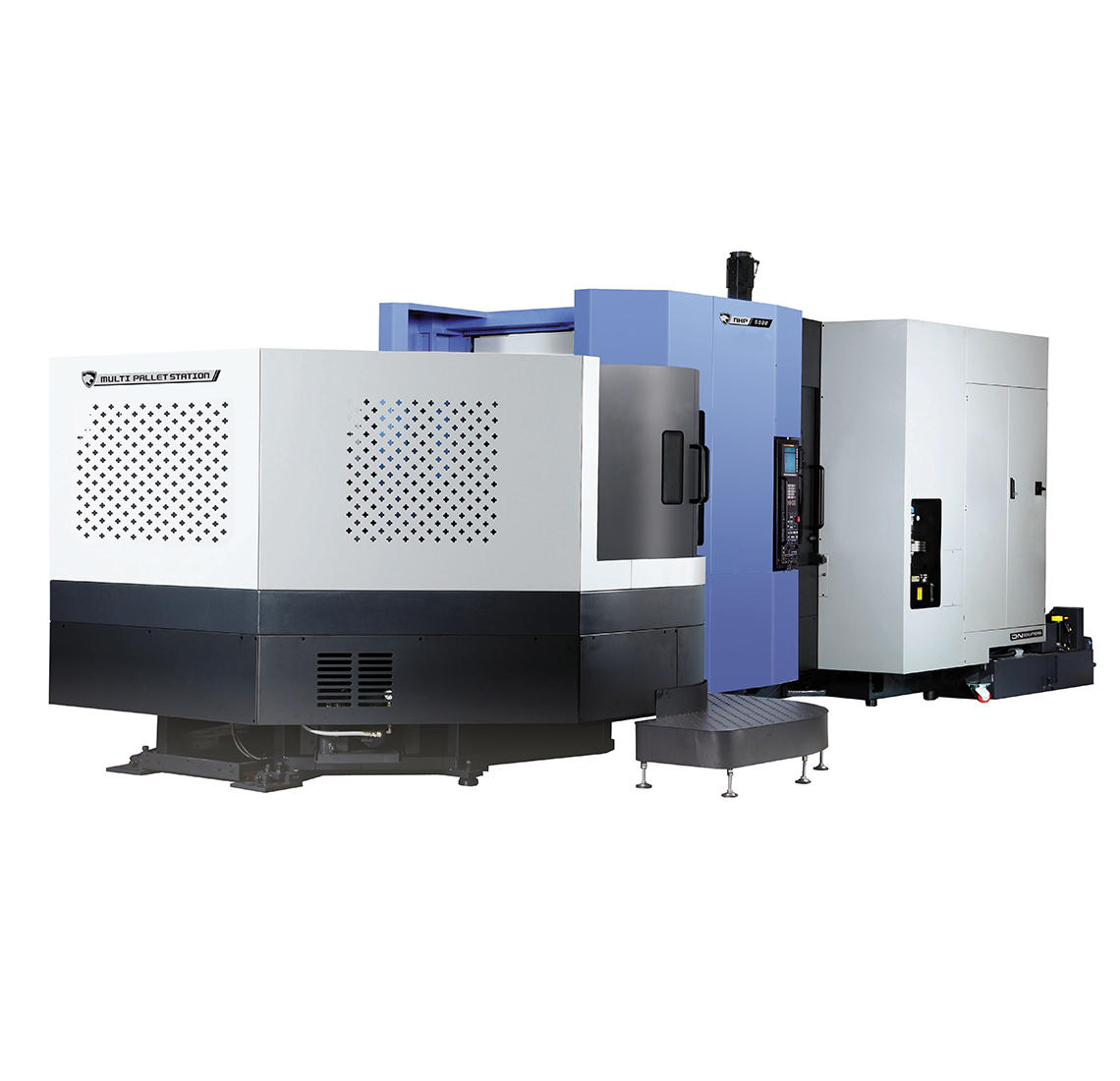

NHM 5000
NHM Series
NHM 5000
Travels
Travel Distance X-axis
|
800 mm (31.5 in)
|
Travel Distance Y-axis
|
700 mm (27.5 in)
|
Travel Distance Z-axis
|
850 mm (33.5 in)
|
Rapid Traverse X-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Y-axis
|
36 m/min (1417 in/min)
|
Rapid Traverse Z-axis
|
36 m/min (1417 in/min)
|
Table
Table Size
|
500 x 500 mm (19.7 x 19.7 in)
|
Max Part Size
|
⌀850 x 1100 mm (33.5 x 43.3 in)
|
Max Load
|
800 kg (1763.7 lbs)
|
Spindle
Speed
|
8000 rpm
|
Power
|
26 kW (35 Hp)
|
Torque
|
1072 Nm (791.1 ft-lbs)
|
Tooling
Shank
|
BIG PLUS CAT 50
|
Changer Capacity
|
90 (Opt. 60)
|
Change Time
|
2-3.5 Seconds
|
Max Diameter
|
⌀130/320 mm (5.1/12.6 in)
|
Max Length
|
530 mm (20.8 in)
|
Machine Size & Weight
Length
|
6,880 mm (269.3 in.)
|
Height
|
3,330 mm (131.1 in.)
|
Width
|
3,675 mm (144.5 in.)
|
Weight
|
19,000 kg (41,887 lbs.)
|
