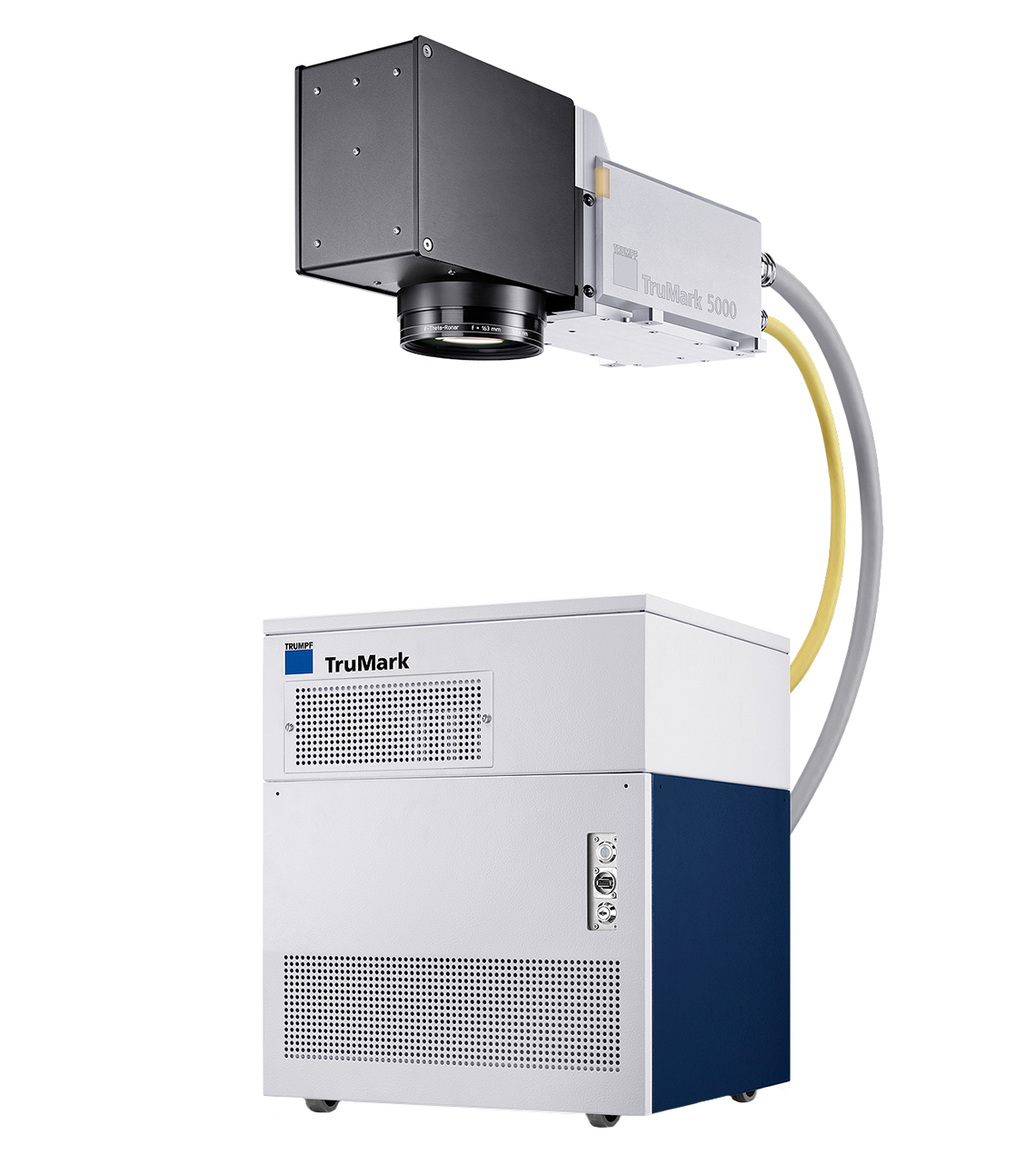

The fiber based TRUMPF TruMark Series 5000 marking laser delivers an optimized combination of high power, high pulse frequency, and adjustable pulse duration features. Capable of handling deep engraving, annealing, and special micro-structuring applications, the Series 5000 is the ideal choice for high-power and short cycle time requirements.
You are here
TruMark 5070
TruMark Series 5000
TruMark 5070
Laser
Beam Quality
|
<3.7 M²
|
Wavelength
|
1,062±3 nm
|
Pulse Repetition Frequency
|
cw, cwm, 1 -1,000 kHz
|
Min. Focal Diameter
|
70 μm (2,755.9 μin.)
|
Max Internal Focal Position Control
|
±60 mm (2.4 in.)
|
Max Marking Field Size
|
290 x 290 mm (11.4 x 11.4 in.)
|
Laser Head Size
Width
|
414 mm (16.3 in.)
|
Height
|
131 mm (5.2 in.)
|
Depth
|
157 mm (6.2 in.)
|
Supply Unit Size
Width
|
445 mm (17.5 in.)
|
Height
|
550 mm (21.6 in.)
|
Depth
|
420 mm (16.5 in.)
|
Installation
Protection Type
|
IP54
|
Ambient Temperature
|
15-40°C (59-104°F)
|
