M-Series
Doosan Robotics M-Series offers a range of models designed to handle complex tasks with precision and efficiency. The M-Series features 6 highly sensitive torque sensors capable of detecting obstructions in the workspace allowing people to work safely alongside the cobot. Additionally, the M-series’ range of models reaches up to 15 kg (33 lbs) payload capacity and 1,700 mm (66.9 in.) reach, and is capable of being mounted in a variety of locations including walls, roofs, and floors.
-
Speed1 m/s
-
Joint 1 Range/Speed±360°;120°/sec
-
Joint 2 Range/Speed±360°;120°/sec
-
Joint 3 Range/Speed±160°;180°/sec
-
Joint 4 Range/Speed±360°;225°/sec
-
Joint 5 Range/Speed±360°;225°/sec
-
Joint 6 Range/Speed±360°;225°/sec
-
Reach1300 mm (51.2 in.)
-
Weight33 kg (72.7 lbs.)
-
Max Robot Load10 kg (22 lbs.)
Explore the M-Series Lineup

M0609
Reach: 35.4 in.
Weight: 59.5 lbs.
Max. Load: 13.2 lbs.

M0617
Reach: 66.9 in.
Weight: 75 lbs.
Max. Load: 13.2 lbs.

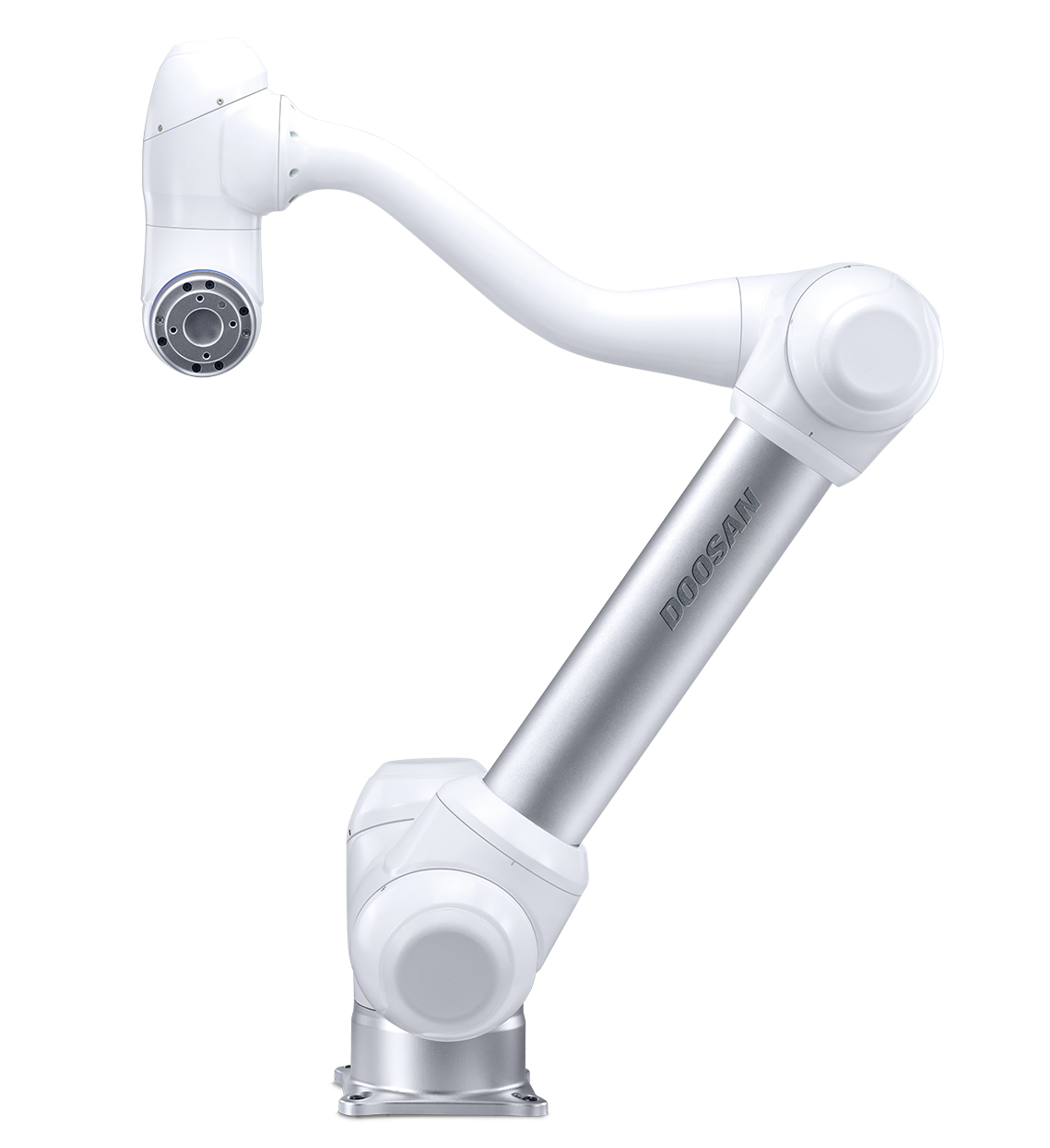

M1013
Reach: 51.2 in.
Weight: 72.7 lbs.
Max. Load: 22 lbs.

M1509
Reach: 35.4 in.
Weight: 70.5 lbs.
Max. Load: 33.1 lbs.
Build a Quote
1. SUBMIT FORM 2. CHECK YOUR EMAIL 3. CLICK EMAIL LINK TO BUILD YOUR PERSONALIZED QUOTE
DOOSAN ROBOTICS
Safety, speed, precision, and compatibility. Discover all the benefits and capabilities of the Doosan Robotics Cobot.
Doosan Robotics

Maximize your automation with the Doosan Cobot Mobile Base
Integrates the robot, controller, and Teach Pendant in a single unit for maximum flexibility and mobility.
Features & Benefits:
- Adjustable robot direction
- Teach Pendant attachment and cable organization Integrated sliding controller and tool drawer
- 2-door structure for easy accessibility

Value Adding Enhancer
MOBILE BASE
Single mobile unit integrating the robot, controller, and teach pendant for maximum flexibility

Value Adding Enhancer
MOBILE BASE
Single mobile unit integrating the robot, controller, and teach pendant for maximum flexibility

Value Adding Enhancer
MOBILE BASE
Single mobile unit integrating the robot, controller, and teach pendant for maximum flexibility

Value Adding Enhancer
MOBILE BASE
Single mobile unit integrating the robot, controller, and teach pendant for maximum flexibility

Value Adding Enhancer
MOBILE BASE
Single mobile unit integrating the robot, controller, and teach pendant for maximum flexibility
Main Applications

Machine Tending
Machine Tending
Feed the CNC machine and load/unload the subject into the pallet

Pick and Place
Pick and Place
Simple loading/unloading work such as moving objects between tasks

Packaging
Packaging
Quick product packaging and transporting tasks in electronic, material handling and plastic industry

Inspection
Inspection
Inspecting internal/external defects and assembly quality

Air Blowing
Air Blowing
Exterior cleaning of finished products or workpieces with spiral spray motion and multi-angle composite spray motion

Gluing and Bonding
Gluing and Bonding
Spraying of consistent amount of adhesive for gluing and bonding

Polishing and Deburring
Polishing and Deburring
Burr removal and surface polishing after processing

Assembly
Assembly
Traditional assembly tasks like screw driving and gear assembling
