FAQ Section

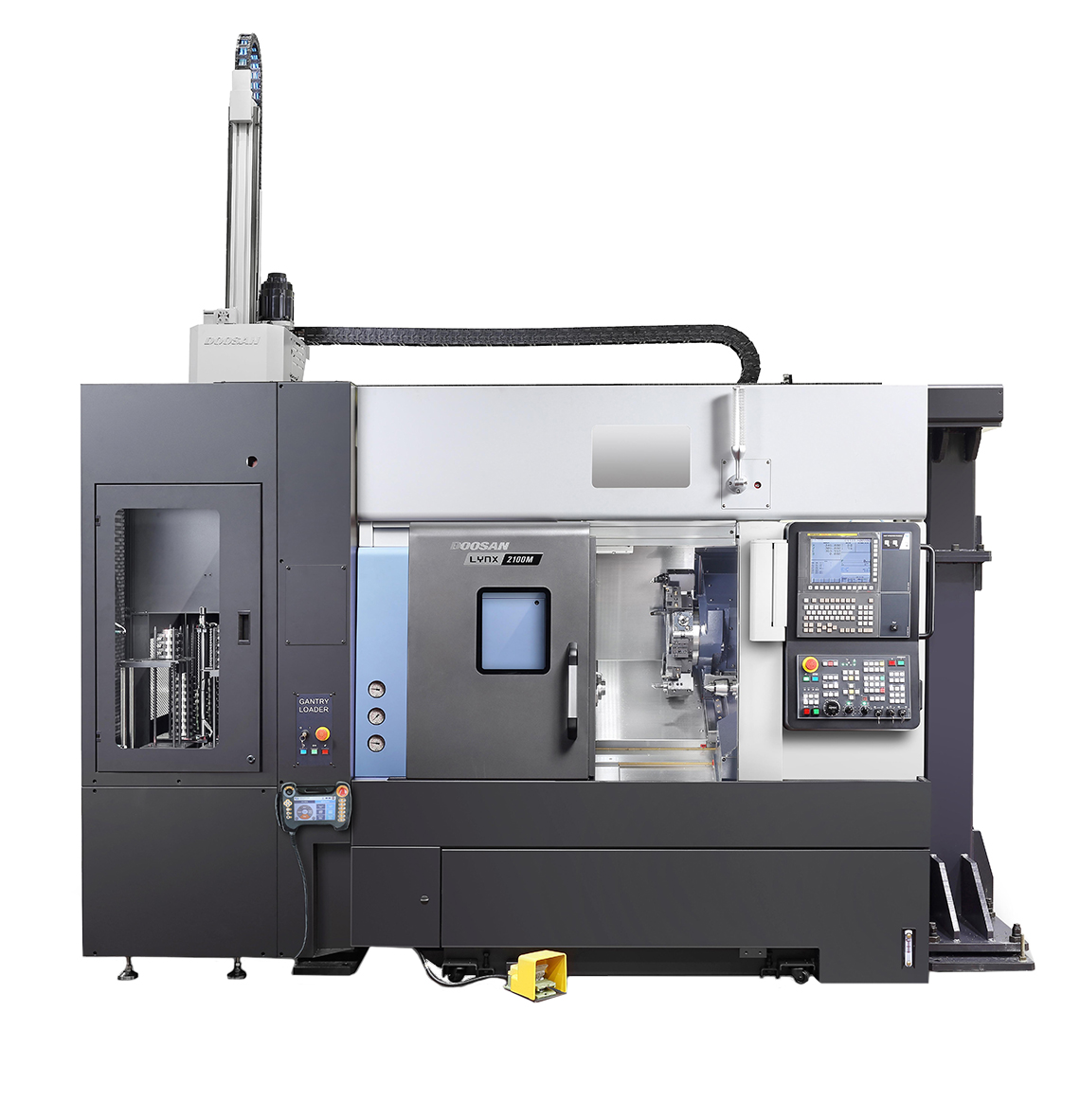

What types of parts are ideal for the Lynx 2100LMB?
The Lynx 2100LMB excels at machining complex small-to-medium-sized parts that require multiple operations such as turning, drilling, and milling. It’s well-suited for industries like aerospace, medical, and automotive where tight tolerances and surface finishes are essential. The machine’s live tooling and full C-axis control allow it to handle jobs that traditionally required multiple setups or machines—such as turned parts with cross holes, milled flats, tapped features, and bolt patterns.
How does the C-axis on the Lynx 2100LMB enhance machining capabilities?
The C-axis allows for angular positioning and full contouring during milling and drilling operations. This is crucial for applications that require precise orientation, such as gear cutting or hole patterns on round parts. With a positioning accuracy of 0.0167° and ±0.006° repeatability, it ensures precision in both indexed and continuous movement, reducing setup time and increasing part complexity capabilities.
What makes the turret on the Lynx 2100LMB unique?
The heavy-duty servo-driven BMT-45 turret can index to 24 positions for increased tool capacity. All 12 stations accept live tools, allowing users to run complex jobs without tool changes. The non-lifting curvic coupling provides 50 kN of clamping force and 0.11-second adjacent indexing—enabling rapid transitions while maintaining rigidity and accuracy. Coolant delivery through the turret improves tool life and surface finish.
How does the Lynx 2100LMB improve operator efficiency and ergonomics?
The machine’s 30-degree slant bed layout improves chip flow and allows for compact machine depth, while the swiveling control panel and front-accessed chuck pressure and coolant controls make setups faster. Features like the EZ Guide i programming system, work lights, and sealed buttons enhance user experience. The tool setter and automated lubrication systems reduce manual tasks, minimizing downtime and operator fatigue.
Can the Lynx 2100LMB be integrated into automated systems?
Yes. The machine comes standard with a programmable part catcher and bar feed interface. Optional accessories such as part conveyors make it ideal for integration with robotic handling systems. This automation readiness makes the Lynx 2100LMB perfect for lights-out machining and scalable production lines, especially in high-mix environments where changeover speed and flexibility are critical.
What are the coolant system options, and why do they matter?
The standard 65 psi coolant system meets most needs, but optional 145 and 1,000 psi systems are available for more demanding drilling and chip evacuation. High-pressure coolant can break vapor barriers and reach cutting edges, reducing thermal stress and improving tool life. These options are especially beneficial in hard metals or deep-hole applications, making the Lynx 2100LMB a smart choice for modern machining environments.
